Parameter
|

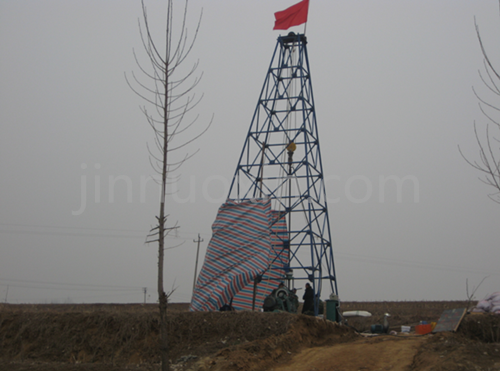

HCX-13 DERRICK FOR DRILLING BOTH STRIGHT AND INCLINED HOLES
|
HCX-18 DERRICK FOR DRILLING BOTH STRIGHT AND INCLINED HOLES
|

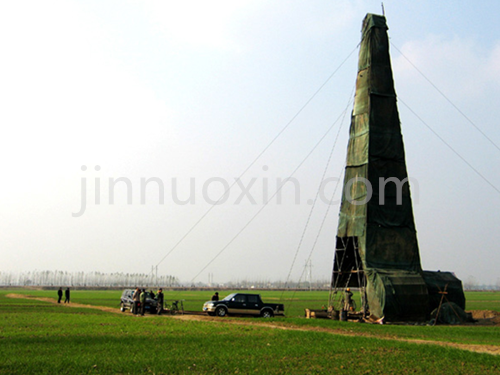

SGZ-23 DERRICK FOR STRIGHT HOLE DRILLING
|
|
Main Features
|
1. In reasonable structure; height of each section 1.3m; With light weight of single piece, it is easy and quick for installation.
|
1. In reasonable structure; height of each section 1.7m; With light weight of single piece, it is easy and quick for installation.
|
1. In reasonable structure; height of each section 1.7m; With light weight of single piece, it is easy and quick for installation.
|
|
2. With large Capacity lifting, it could meet 800m vertical hole and 600m inclined holes drilling.
|
2. With large Capacity lifting, it could meet 1500m vertical hole and 1200m inclined holes drilling.
|
2. With large Capacity lifting, it could meet 1800m vertical hole and 1200m inclined holes drilling.
|
|
3. It is adaptable and the steel base could be used for variety of common longitudinal rigs with drilling depth from 300m to 800m.
|
3. It is adaptable and the steel base could be used for variety of common longitudinal rigs with drilling depth from 1000m to 1500m.
|
3. It is adaptable and the steel base could be used for variety of common longitudinal rigs with drilling depth from 1500m to 2400m.
|
|
4. Occupying only a small area, the base costs less for land digging and leveling, suitable for mountain area application.
|
4. Occupying only a small area, the base costs less for land digging and leveling, suitable for mountain area application.
|
4. Occupying only a small area, the base costs less for land digging and leveling, suitable for mountain area application.
|
|
Nominal Height
|
13M
|
18M
|
23M
|
|
Max Dead Load of Crown Block Beam
|
320KN
|
320KN
|
320KN
|
|
Lifting Length of Drilling Rod
|
2×4.5 or 3×3
|
3×4.5 or 4×3
|
4×4.5 or 6×3
|
|
Adapt to Angle of hole inclination
|
75°-90°
|
75°-90°
|
90°
|
|
Nominal Area of Base
|
3.8M×4.7M
|
4.5M×5.8M
|
5.5Mx5.5M
|
|
Number of Crowned Pulleys
|
3pcs
|
3pcs
|
4pcs
|
|
Max Load of Cage
|
0.8KN
|
0.8KN
|
0.8KN
|
|
Weight
|
4450KG
|
5480KG
|
7500KG
|
